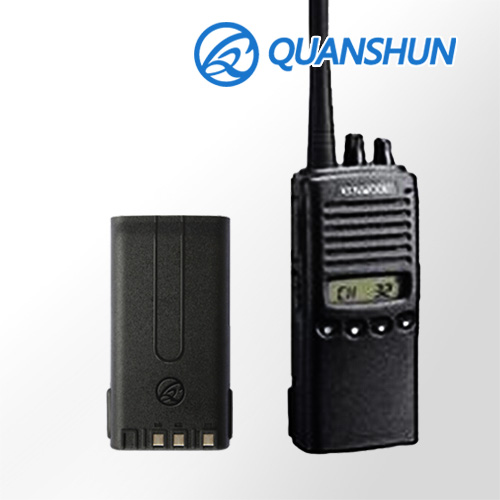

QKB-15L two way radio LI-Ion battery for Kenwood KNB-15L fits in TK-238 TK-260 TK-261 TK-270 TK-270G TK-272 TK-278 TK-278G TK-338 TK-360 TK-370 TK-372 TK-378G TK-388 TK-378 TK-2100 TK-2102 TK-2107 TK-2107G TK-3100 TK-3101 TK-3102 TK-3107 TK-3107G
| Manufacturer Model |
QKB-15L |
| Brand Name |
QuanShun |
| Manufacturer |
Quanshun Communication Technology Co., Ltd. |
| Place of origin |
China |
| Original Brand |
Kenwood |
| Original Model |
KNB-15L |
| Compatible Radios |
Kenwood TK-238 TK-260 TK-261 TK-270 TK-270G TK-272 TK-278 TK-278G TK-338 TK-360 TK-370 TK-372 TK-378G TK-388 TK-378 TK-2100 TK-2102 TK-2107 TK-2107G TK-3100 TK-3101 TK-3102 TK-3107 TK-3107G |
| Compatible Charger |
QSC-503 |
| Nominal Voltage |
7.4V |
| Chemistry |
Lithium |
| Nominal Capacity |
2200mAh |
| Weight |
180.0g |
| Extra Capacity |
2500 / 3000 mAh |
| Cell Used |
Panasonic, SANYO, SAMSUNG, YUASA, GP, BYD, BAK |
| Dimensions |
111 * 60 * 21 (mm) |
| Color |
Black |
| Housing Material |
PC+ABS+Fireproofing Material |
| Assembly Construction |
Housing Bonded by Ultrasonic |
| Contacts |
Gold or Silver Plating |
| Circuit Connection |
With PCB or FPCB |
| Belt Clip |
Not |
| Certifications |
CE, Fcc, RoHS, UN38.3, MSDS, ISO9001 |
| Overcharge Test |
Passed |
| Thermal Test |
Passed |
| Vibration Test |
Passed |
| Shock Test |
Passed |
| External Short Circuit Test |
Passed |
| Altitude Simulation Test |
Passed |
| Waterproof |
Not |
| Working Temperature |
0-60℃ |
| ChargingTemperature |
10-40℃ |
| Storage Temperature |
20~20°C(with in 1year)
20~30°C(with in 3month)
20~40°C(with in 1month)
20~50°C(with in 1week) |
| Cycle Life |
500 Cycles |
| Warranty |
18 Months |
*Specification subject to change without notice.
Compatible Radios: for Kenwood TK-238 TK-260 TK-261 TK-270 TK-270G TK-272 TK-278 TK-278G TK-338 TK-360 TK-370 TK-372 TK-378G TK-388 TK-378 TK-2100 TK-2102 TK-2107 TK-2107G TK-3100 TK-3101 TK-3102 TK-3107 TK-3107G
Compatible charger: QSC-503
