| Manufacturer Model |
QHB2404L |
| Brand Name |
QuanShun |
| Manufacturer |
Quanshun Communication Technology Co., Ltd. |
| Place of origin |
China |
| Original Brand |
Hytera |
| Original Model |
BL2404 |
| Compatible Radios |
TC-890GM, TC880GM |
| Compatible Chargers |
CH10L14 |
| Nominal Voltage |
7.4V |
| Chemistry |
Lithium |
| Nominal Capacity |
2400mAh |
| Weight |
137.7g |
| Extra Capacity |
2000, 2200mAh |
| Cell Used |
Panasonic, SANYO, SAMSUNG, YUASA, GP, BYD, BAK |
| Dimensions |
118.2*56.6*19.2(mm) |
| Color |
Black |
| Housing Materical |
PC+ABS+Fireproofing Material |
| Assembly Construction |
Housing Bonded by Ultrasonic |
| Contacts |
Gold or Silver Plating |
| Circuit Connection |
With PCB or FPCB |
| Belt Clip |
Not |
| Certifications |
CE, Fcc, RoHS, UN38.3, MSDS |
| Overcharge Test |
Passed |
| Thermal Test |
Passed |
| Vibration Test |
Passed |
| Shock Test |
Passed |
| External Short Circuit Test |
Passed |
| Altitude Simulation Test |
Passed |
| Waterproof |
Not |
| Working Temperature |
0-60℃ |
| ChargingTemperature |
10-40℃ |
| Storage Temperature |
20~20°C(with in 1year)
20~30°C(with in 3month)
20~40°C(with in 1month)
20~50°C(with in 1week) |
| Cycle Life |
500 Cycles |
| Warranty |
18 Month |
*Specification subject to change without change.

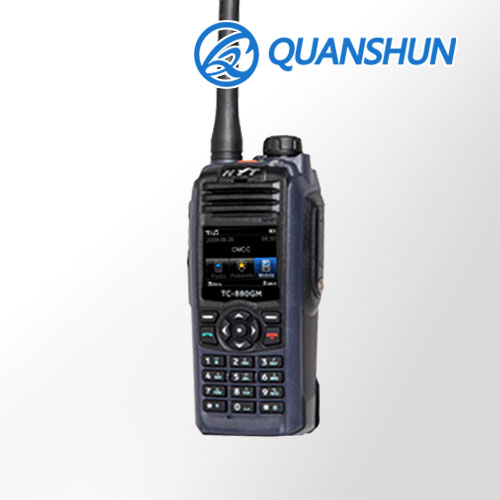

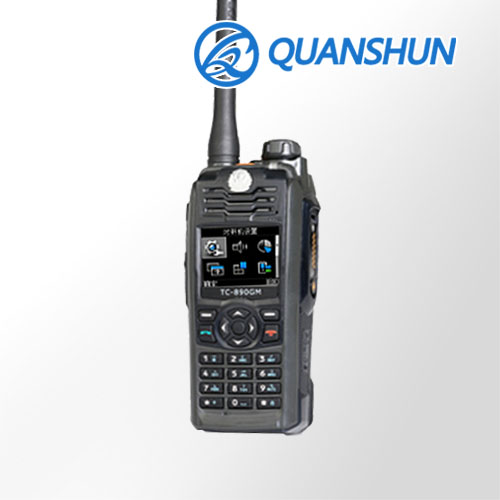

Fit in :TC-890GM TC-880GM
