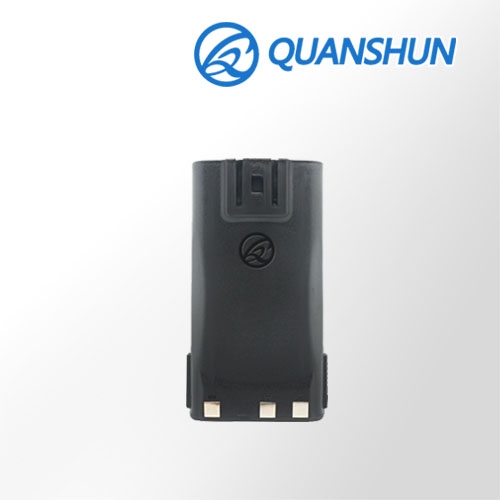

QHB1102 Two-way Radio Ni-Cd Ni-MH Batteries for Hytera BH1102 fit for TC-268,TC-368,TC-268S,TC-368S ,TC-368G
| Manufacturer Model |
QHB1102 |
| Brand Name |
QuanShun |
| Manufacturer |
Quanshun Communication Technology Co., Ltd. |
| Place of origin |
China |
| Original Brand |
Hytera |
| Original Model |
BH1102 |
| Compatible Radios |
TC-268, TC-368, TC-268S, TC-368S, TC-368G |
| Compatible Chargers |
CH10N02 |
| Nominal Voltage |
7.2V |
| Chemistry |
Nickel Metal Hydride & Nickel Cadmium |
| Nominal Capacity |
1100mAh |
| Weight |
167.1g |
| Extra Capacity |
1300, 1500, 1800mAh |
| Cell Used |
Panasonic, SANYO, SAMSUNG, YUASA, GP, BYD, BAK |
| Dimensions |
110.0*58.5*17.4(mm) |
| Color |
Black |
| Housing Materical |
PC+ABS+Fireproofing Material |
| Assembly Construction |
Housing Bonded by Ultrasonic |
| Contacts |
Gold or Silver Plating |
| Circuit Connection |
With PCB or FPCB |
| Belt Clip |
QHL09 |
| Certifications |
CE, Fcc, RoHS, UN38.3, MSDS |
| Overcharge Test |
Passed |
| Thermal Test |
Passed |
| Vibration Test |
Passed |
| Shock Test |
Passed |
| External Short Circuit Test |
Passed |
| Altitude Simulation Test |
Passed |
| Waterproof |
Not |
| Working Temperature |
0-60℃ |
| ChargingTemperature |
10-40℃ |
| Storage Temperature |
20~20°C(with in 1year)
20~30°C(with in 3month)
20~40°C(with in 1month)
20~50°C(with in 1week) |
| Cycle Life |
500 Cycles |
| Warranty |
18 Month |
*Specification subject to change without notice .

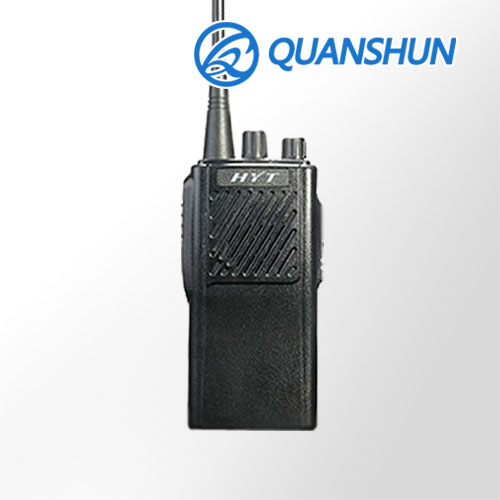

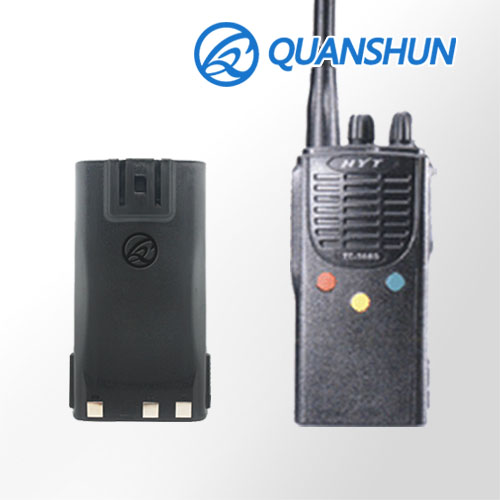

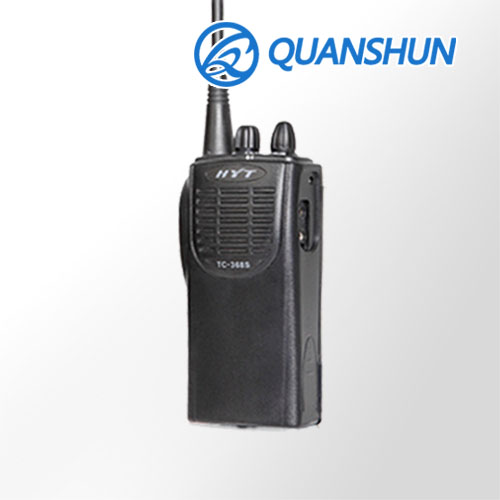

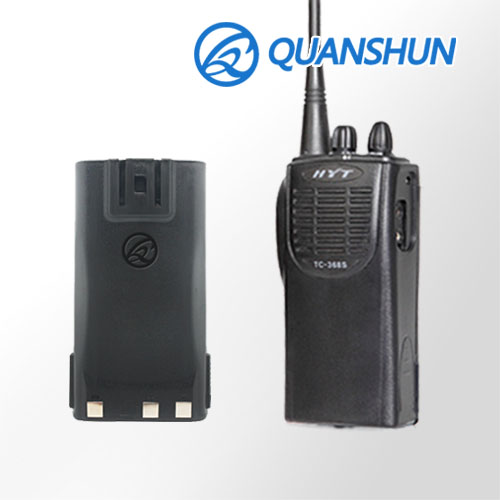

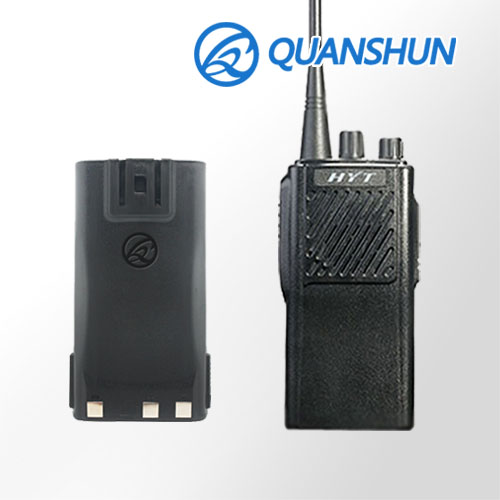

Fit in TC-268,TC-368,TC-268S,TC-368S,TC-368G
Compatible for chargers：CH10N02
